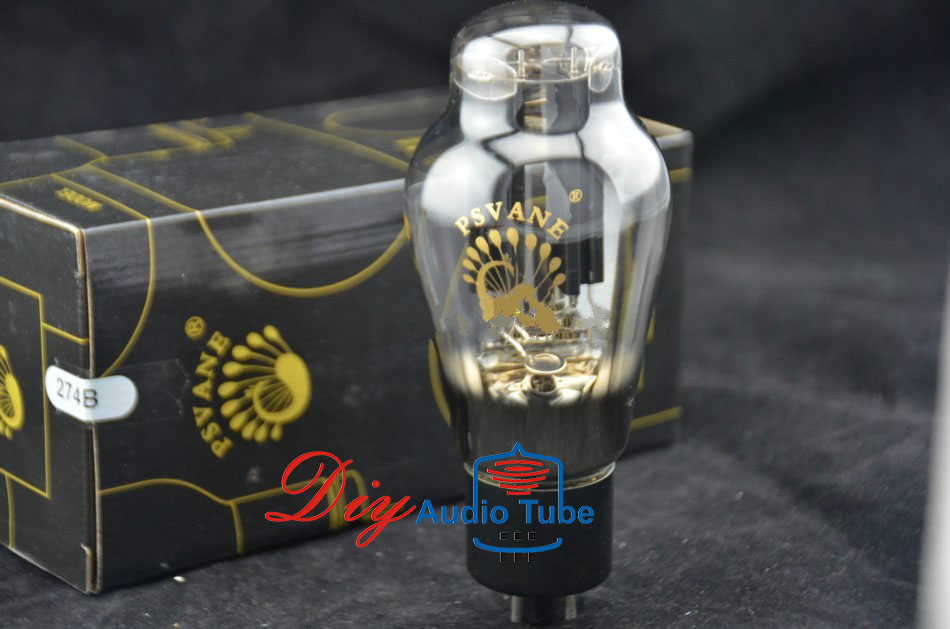

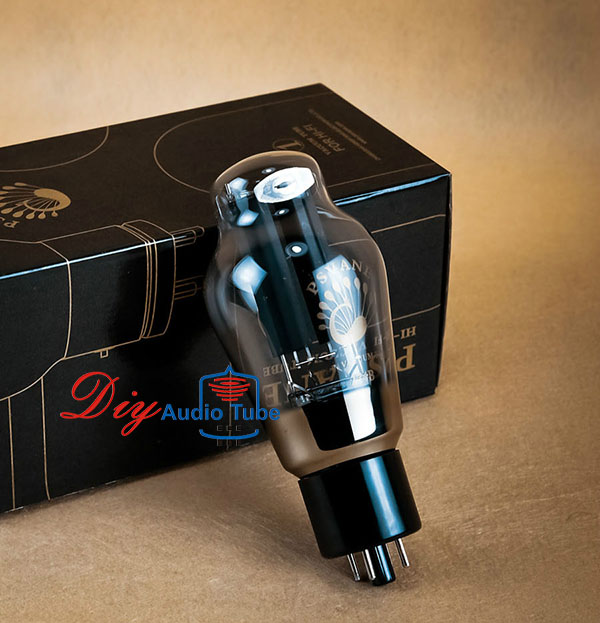

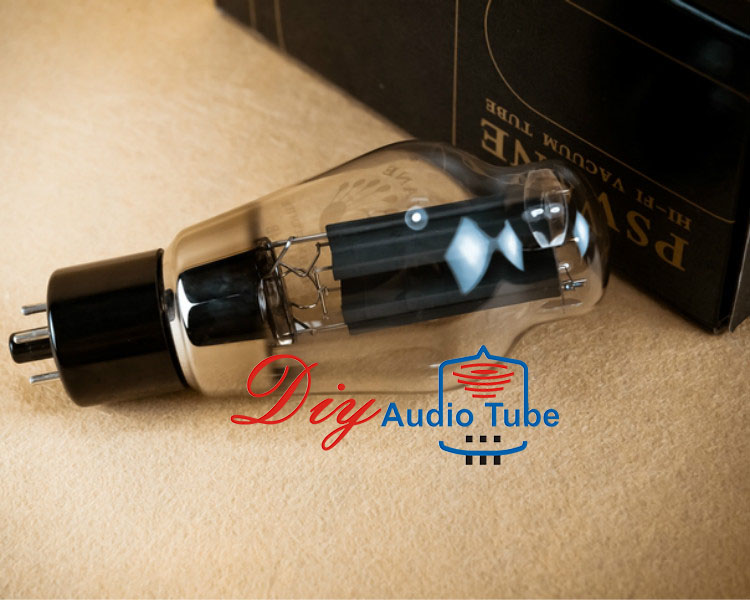

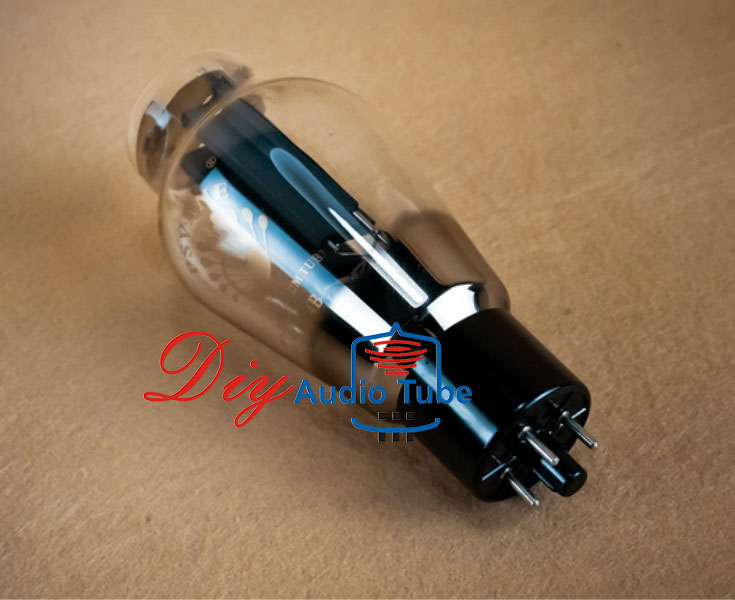

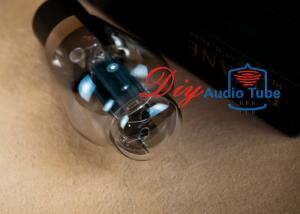

Stereo Amplifier Psvane HiFi 274B Rectifier Vaccum Tube Tested Replace WE274B

Name: Stereo Amplifier Psvane HiFi 274B Rectifier Vaccum Tube Tested Replace WE274B
Brand: PSVANE
Price: 1 USD

Brand Name : PSVANE

Model Number : HIFI 274B

Certification : Rhos

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : Paypal, T/T, Western Union

Supply Ability : 1000pcs/month

Packaging Details : Standard box

Type : Audio Tube

Model : HIFI 274B

Brand : PSVANE

Application : tube amplifier

Socket : 4 pins

Material : Glass

Contact Now

Stereo Amplifier Psvane HiFi 274B Rectifier Vaccum Tube Tested Replace WE274B

274B

Hi-Fi Series: classic style, exquisite craft, comprehensive and balanced sound performance, largest sales volume over the world, best choice for you .

Stereo Amplifier Psvane HiFi 274B Rectifier Vaccum Tube Tested Replace WE274B

274B

Glass shell eight feet directly heated full-wave rectifier,274B is very similar with 5U4G and 5Z3P, which can be replaced by each other.

Heater

Uf………………5V
If…………… 2.5A

Maximum Rating

anode inverse peak voltage……………1550V
anode peak current ………750mA

Recommend working condition

Anode supply voltage 2×500V

Each arm impedance 75Ω

load impedance 2000Ω

Filter capacitor 4μF

Rectifier current ≧230mA
