RX18 1200W high power 50ohm aluminum housing case resistor for inverters

RX18 1200W high power 50ohm aluminum housing case resistor for inverters

Features:

1.High insulating capacity,
encapsulation by non-flame inorganic material,good performance in vibration humidity and heat and good
dissipation.

2.Small size,high power load

3.Widely used in power
supply,transducer,elevator,arena audio and Lifting,Braking,Ship ,Load equipment, high requirement equipment industry,ect.

4.Multi connection form will be easily to fix.
Aluminum crust surface with good performance in heat radiation, suitable for cooling plate installation, can be used in the atrocious environment

Small size and high power load

High insulating capacity, encapsulation by non-flame inorganic material, good performance in vibration

Multiple connection form will be easily to fix

Widely used in power supply, transducer, elevator, arena audio, and high requirement equipment industry

Resistance tolerance: ±1%, ±2% ±5%, and ±10%

Power: 5, 10, 25, 30, 50, 75, 100, 150, 200, 250, 300, and 500W

Tolerance: ±1%, ±2% ±5%, and ±10%

Range: 1R to 100K .

carbon film resistor

wire wound resistor

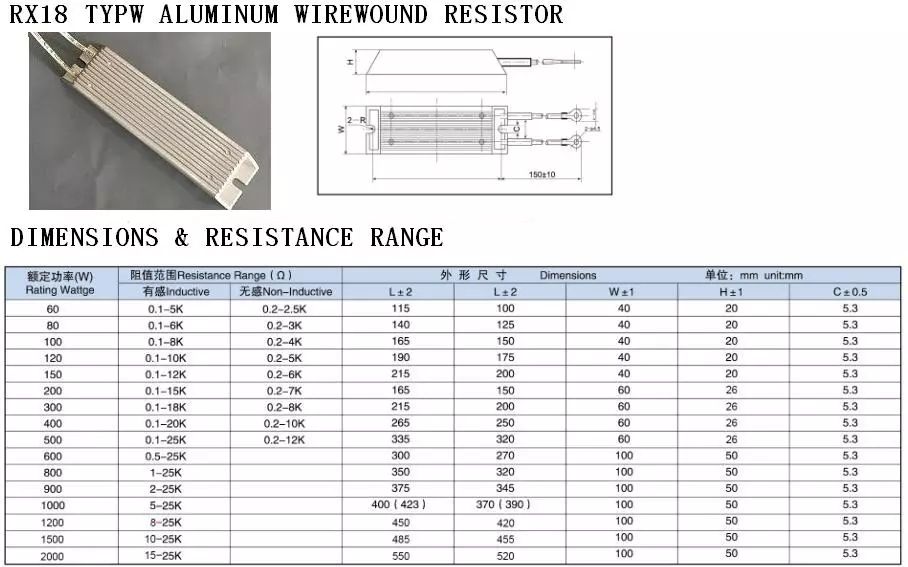

RX18 1200W high power 50ohm aluminum housing case resistor for inverters Images
