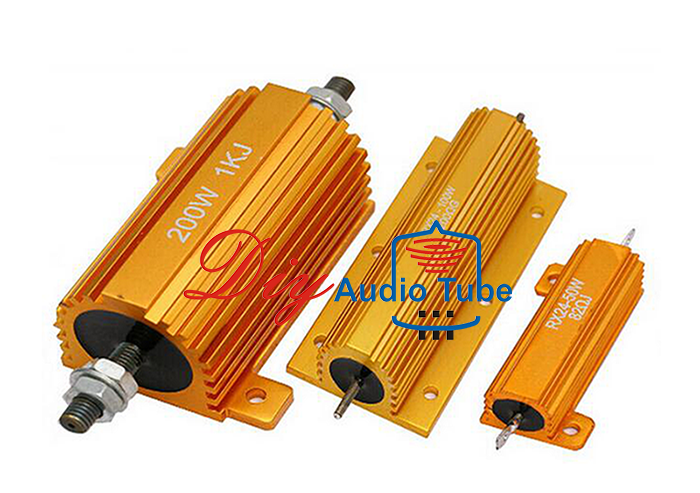

Audiophile Grade Resistors 4ohm 4R0 200W Watt Power Aluminum shell Wirewound metal resistor
Chief Characteristic:.
1.Use metal aluminum shell radiator.
2.Small value.
3.High power load. We can produce resistor 10ohm 10w.
4.Due to the adoption of silicone resin or silica sand encapsulation,the products with good insulation performance and the ideal thermal conductive function.
5.Suitable for cooling plate installation.
Chief Property Parameters:
| Type | Rated Power
(W) | Resistance
Range
(Ω) | Resistance Tolerance(％) | ResistanceCoefficient(ppm/°C) | Tolerant Voltage
(Vac RMS) |
| RX24 | 5 | 0.51-1.0K | 1(F) | R≥10Ω : ±250 5Ω<R<10Ω:
±500
R≤5Ω : | 500V |
| 10 | 0.51-1.5K | 2(G) | 1500V |
| 25 | 0.51-8.2K | 5(J ) |
| 50 | 0.51-20.0K | 10(K) | 2000V |

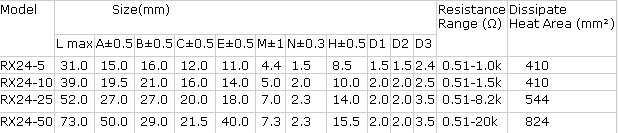

Structure Size:

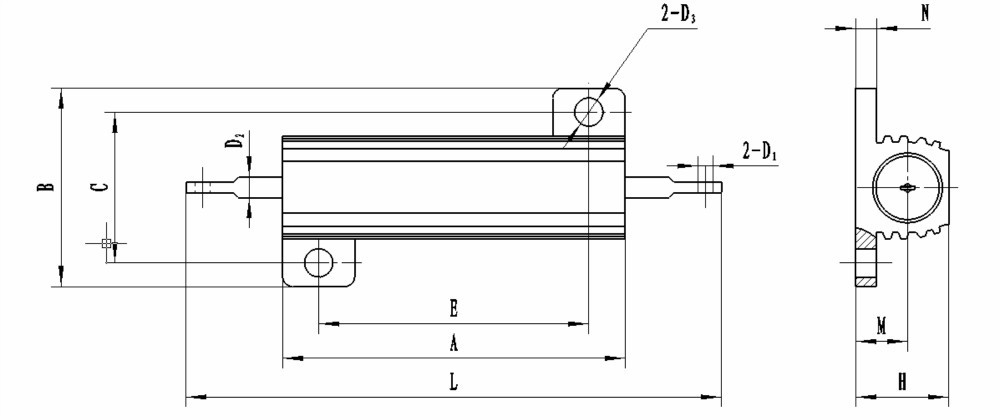

Contour Drawing:
Note:
When using the resistor, you should be equipped with the corresponding etalon of the heat radiator panels , if no equipped with, the power load should be cut in half.
We can produce resistor 10ohm 10w.

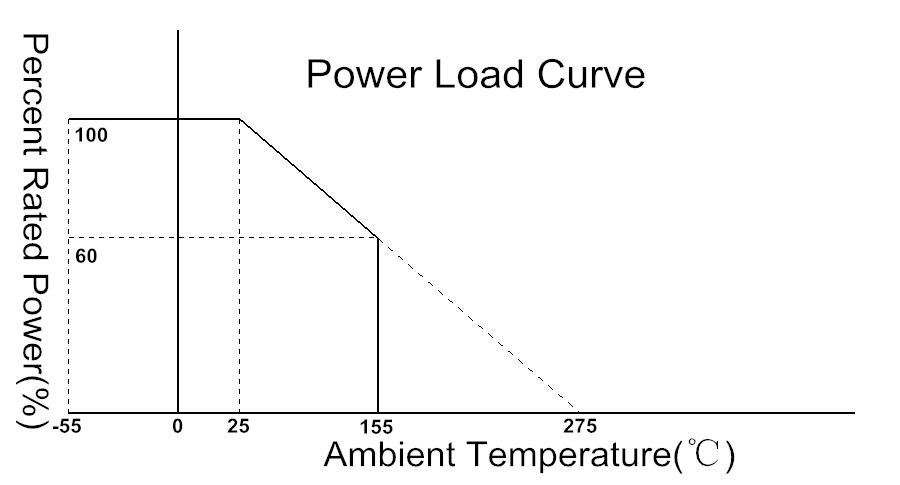

Power Derating Curve:
Applications scope:
1.Be able to use in the domain of the electric power,electric locomotive ,machine-electric equipment etc.
2.They are Perfect elements of the power absorption and load.
3.Principally used in electronic test equipment,high voltage switch, high voltage electric transport,large
power electrical, electronic specialized precision instrument, new type medical equipment manufacture and high voltage electrostatic precipitator etc
Other Details:
1.The resistor is used in DC or low frequency AC circuits.
2.We can provide the non-inductance resistor if it will be used in high frequency circuit.
Technology Standard:
1:GB/T 5729-2003
2:Q/QH 1637-2014
